A Guide To The Different Parts Of The Saxophone

Despite being one of the newest wind instruments in the family, the saxophone has been around for a while. Additionally, it has one of the more intricate designs of any woodwind instrument, making it initially difficult to understand what each component does.

We’ll give you a brief overview of the various components of a saxophone in this article, as well as an explanation of what each component does and why it’s significant.


The Anatomy of a Saxophone

Understanding the saxophone’s various components and basic construction is beneficial when learning how to play the instrument.

The majority of saxophone types are divided into three groups:

  • The oral apparatus
  • The head
  • Your body

The anatomy of the alto and tenor saxes will be discussed in this article; however, other members of the same family have slightly modified versions of this basic structure.

The Mouthpiece

The mouthpiece, one of the most crucial components of the saxophone when it comes to tone quality, is the first item we’ll examine.

The musician blows into this portion of the horn, which is where the sound is first produced because it fits in the mouth.

Hard rubber is the material used most frequently for saxophone mouthpieces, but you can also find them made of metal, plastic, wood, glass, and crystal.

As you might expect, metal mouthpieces are brighter and louder than their hard rubber equivalents.

But a mouthpiece’s ability to produce a particular sound is also influenced by a wide range of additional factors.

The area between the reed and the edge of the mouthpiece is called the tip opening.

In general, a brighter and bolder sound quality results from a wider tip opening.

Then there is the Chamber, which is the empty space inside the mouthpiece and comes in a variety of sizes with various effects on sound.

The last component is the baffle, which is a ledge on the upper portion of the mouthpiece’s interior.

Again, there are many different geometric shapes that the baffle can take, and each one alters the type of sound that is produced.

The Reed

The Reed

We refer to saxophones as single Reed instruments.

The musician blows over reeds, which are objects made of wood (typically bamboo) that rest on top of the mouthpiece.

It is the component that actually generates the sound because when the musician blows into the mouthpiece, the reed vibrates and produces the sound.

The number assigned to each saxophone reed, which ranges from 1 to 5, indicates how hard or soft the reed is.

Lower ratings indicate softer reeds, while higher ratings indicate stiffer, harder reeds.

Beginners are typically advised to select a softer reed (under 2.5) because they are simpler to play, while more experienced players will select a harder reed.

The Ligature

The Ligature

The reed is held firmly in place on the mouthpiece by the Ligature, a device that wraps around the mouthpiece.

They are typically made of metal, but, like the mouthpiece, they can also be made of many other things, including string, leather, leatherette, gold, and plastic.

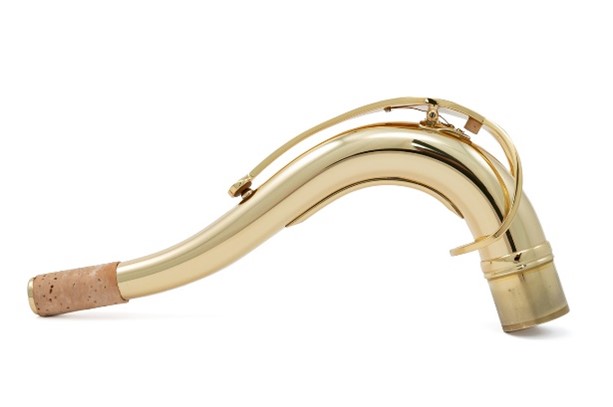

The Neck (or Crook)

The Neck (or Crook)

The Neck, also referred to as the Crook, is the next component in the saxophone assembly process and it connects the mouthpiece to the instrument’s body.

It is made to fit inside the saxophone’s body on one end, where a screw (known as the Neck Screw) at the top of the body secures it.

The mouthpiece is attached to the neck on the other end, and the cork—which we’ll examine next—holds the neck in place.

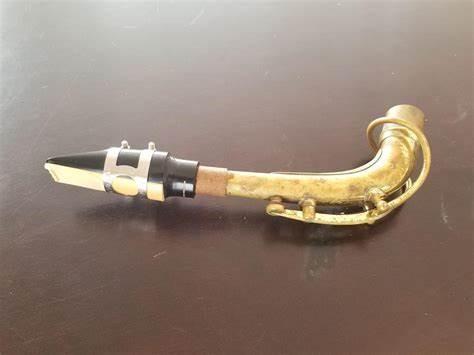

The Cork

The Cork

The mouthpiece slides over a piece of cork called the Cork to connect to the neck, as you might have guessed.

When attaching the mouthpiece, push it over the cork while gently twisting it back and forth.

Additionally, you can lubricate it with some cork grease to make it simpler to slide the mouthpiece up and down to tune the saxophone.

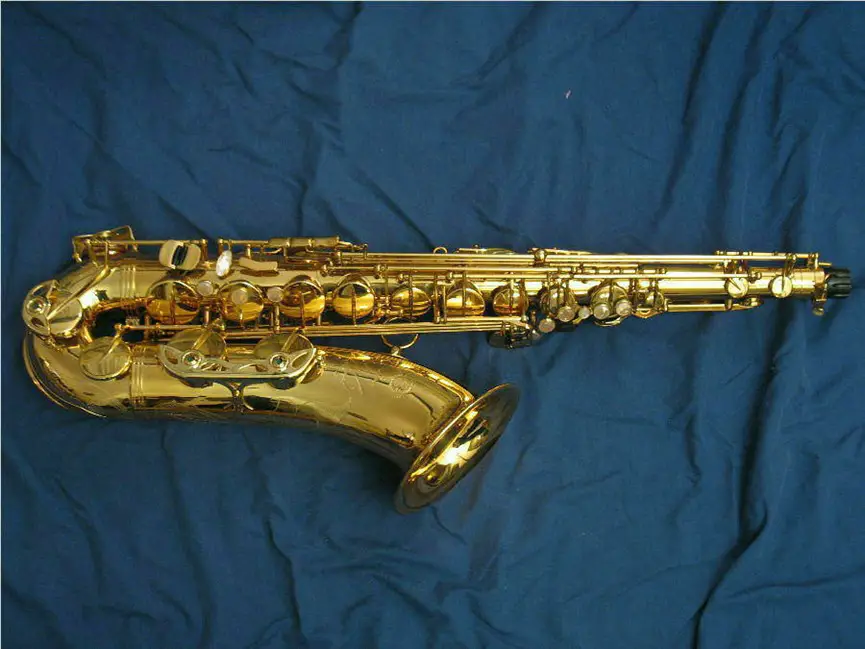

The Body

The Body

The brass tube that the air travels through as it is blown into the saxophone is known as the instrument’s body.

It has all the keys, rods, and pads necessary to alter the pitch of the note being played.

The body of your saxophone may be straight, as in the case of a soprano saxophone, or it may curve downward, as in the case of a tenor or baritone saxophone.

The Keys

The 23 keys on a contemporary saxophone include the six pearl keys on the front. The palm keys are used with your left hand, and the remaining keys are used with both pinkies.

Each tone hole on the instrument can be closed or opened to change the pitch depending on which keys are depressed.

The saxophone’s pitch falls as a result of the air having to travel farther down the instrument as more keys are depressed.

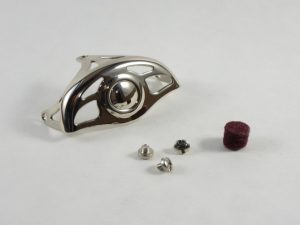

Key Guards

Key Guards

To safeguard the keys stored beneath them, the Key Guards are depicted on the saxophone’s bell and elbow.

The key guards on more sophisticated saxophone models are frequently engraved with elaborate patterns.

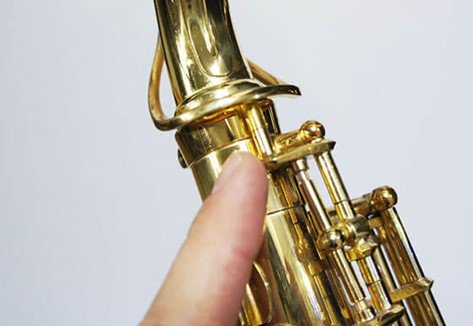

The Octave key

The Octave key

You use your left thumb to operate the Octave key, which is the key on the back of the horn above the thumb rest.

Any note being played is raised an octave when the octave key is depressed because it opens the tone hole on the neck.

The altissimo, or extremely upper, range, is also played using this key.

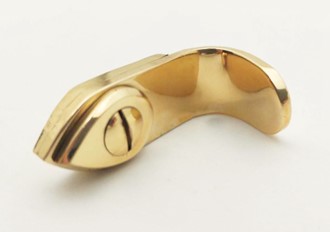

Thumb Rest and Hooks

Thumb Rest and Hooks

There is a Thumb Rest that you can use to balance the horn while holding it.

This is the outward shelf that protrudes from the back’s horn’s base.

Its curvature makes it easy to hold the horn with your right thumb.

You will attach the neck strap to the circular hook that is located directly above the thumb rest.

Nearly all saxophone players use a neck strap to secure their instruments.

The Elbow

The curved portion at the bottom of the alto, tenor, and baritone saxophones—basically any curved sax—is known as the elbow or bow.

You should take extra care when carrying your saxophone around because this is the part that gets dented the most frequently.

Your saxophone’s playability and intonation could be severely impacted by a dent, making it less enjoyable to play.

The Bell

The horn’s flared end is referred to as The Bell.

While some of the keys that play lower notes are located there, its primary job is to stabilize the note and project the horn’s sound.

Consider the type of bell you want before buying a saxophone because different models have varying bell sizes.

Summing up the Saxophone’s Parts

This concludes our article on the components of the saxophone. We hope it has provided some clarification on their locations and functions.

As you can see, the saxophone is a fairly complex instrument in terms of design, but the good news is that each type is very similar, so once you learn how to play one, you can pick up another quickly.

Saxophone FAQs

What’s the saxophone’s fundamental construction?

Four basic components make up a saxophone: the neck, the body, the U-shaped bow, and the bell, which is round and flared. There are 25 tone holes distributed evenly along the instrument’s length.

Where is the mouthpiece on a saxophone located?

The mouthpiece is the first component of a saxophone that you will notice. It is therefore located on the instrument’s neck. The reed begins to vibrate when air is blown into the mouthpiece. The mouthpiece can slide in because there is a cork inside.

What purpose does the saxophone bow serve?

This component circulates air and vibration throughout the entire saxophone. Consequently, it is an essential component of the saxophone. A saxophone has a component that resembles the letter U.

The bow is what musicians refer to. This section exhales the air the musician inserted.
